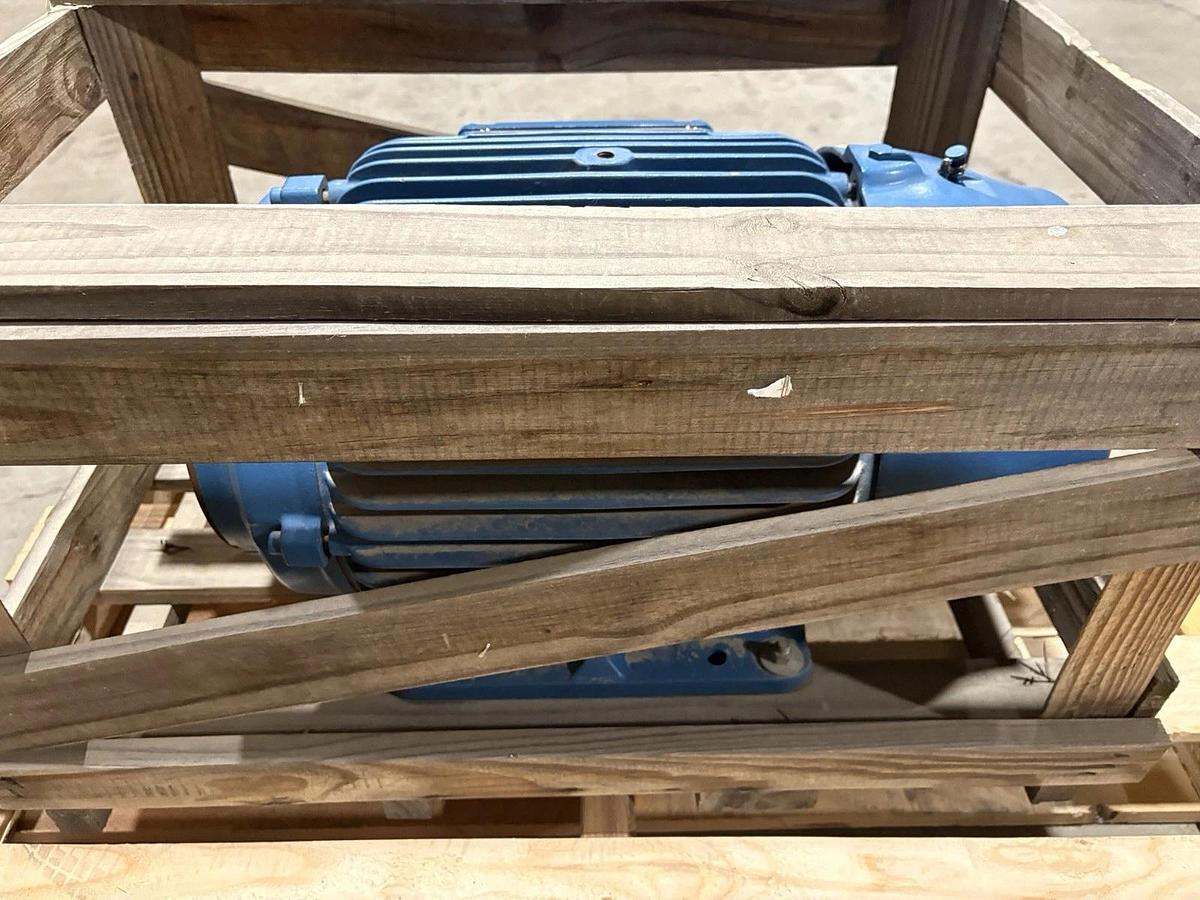

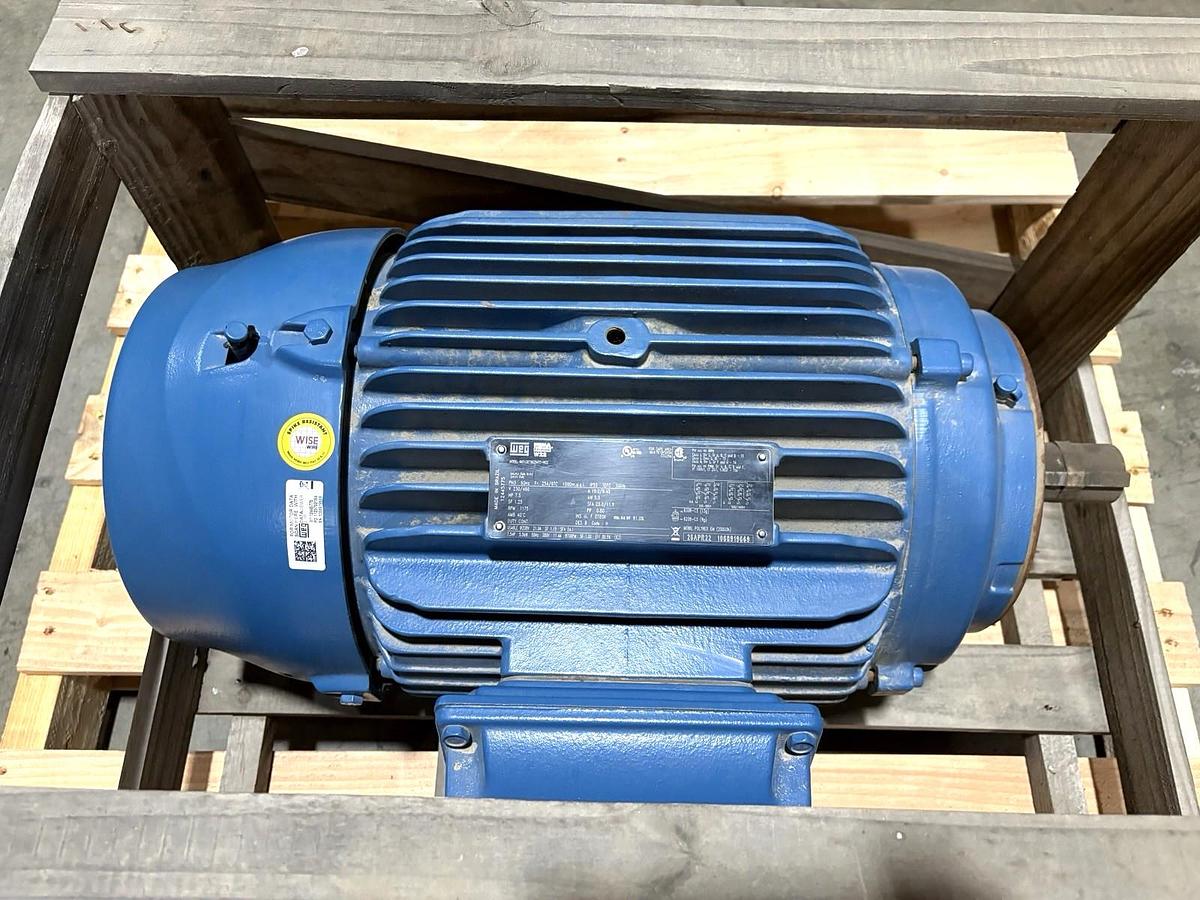

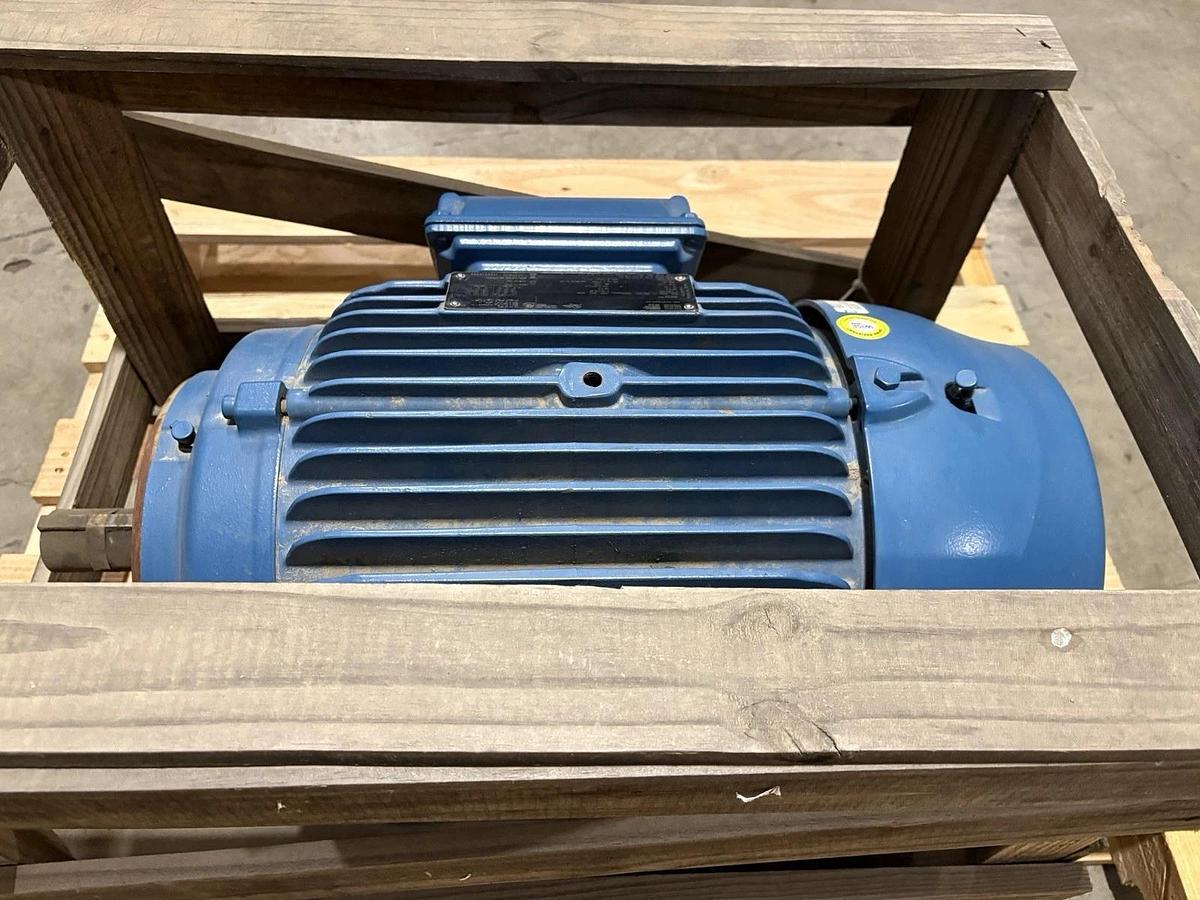

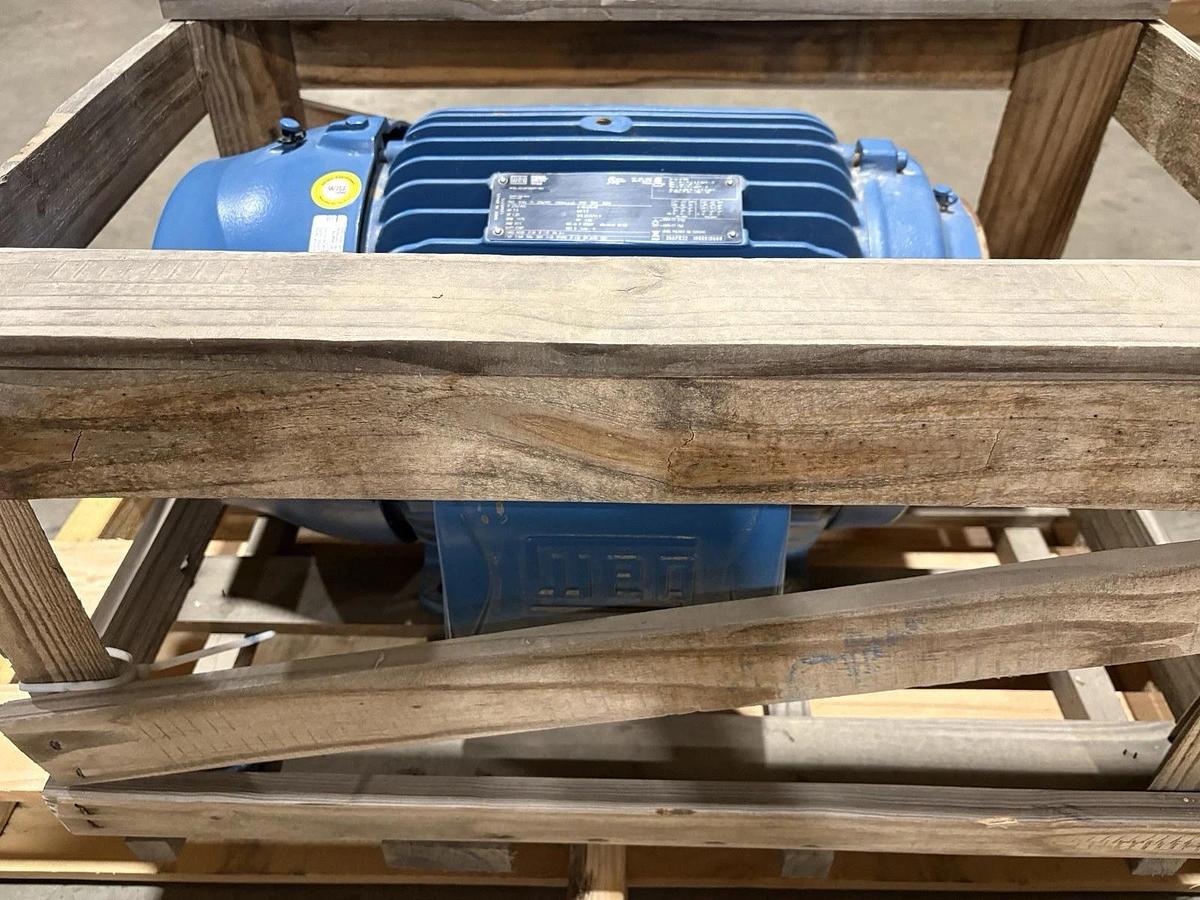

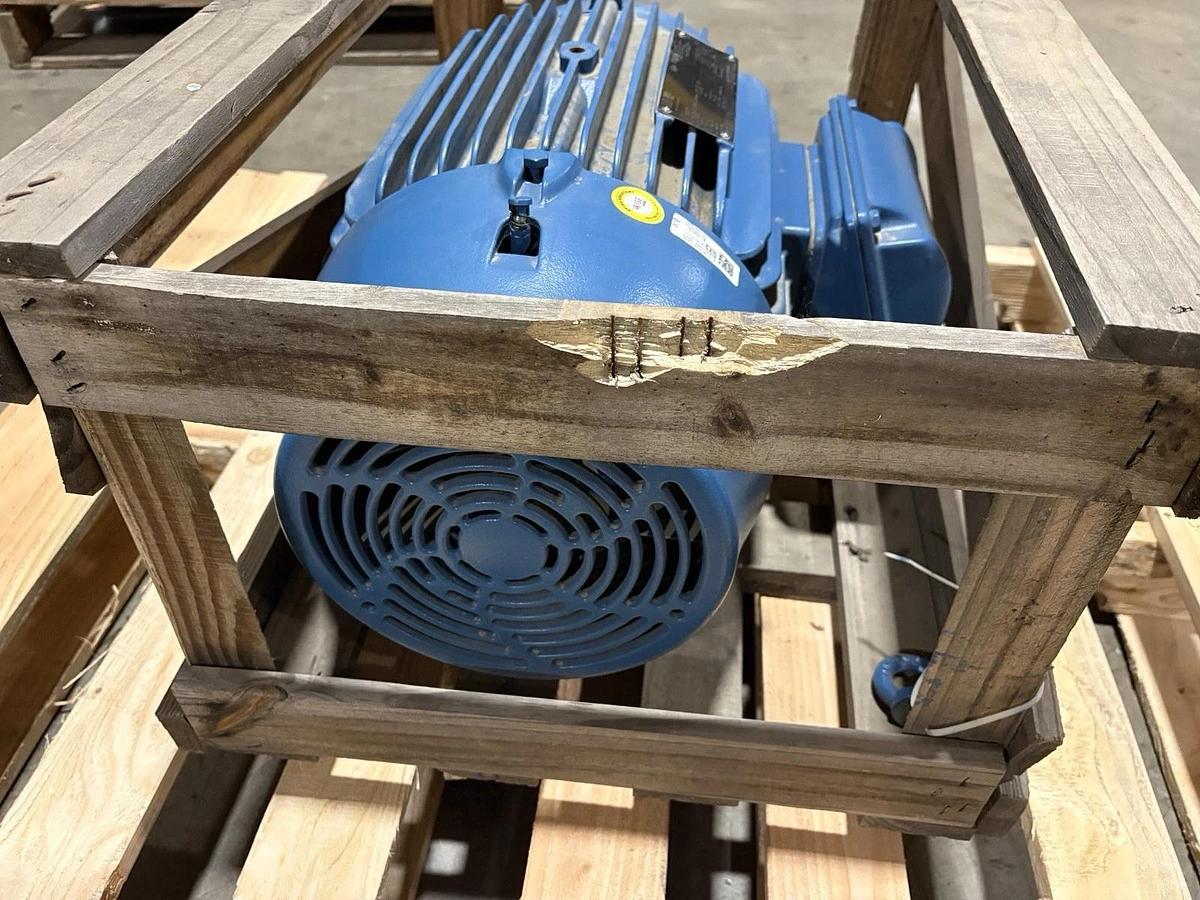

New WEG 00712ET3E254TC-W22 7.5HP TEFC Motor 230/460V 1200rpm 254/6TC Frame

New WEG 00712ET3E254TC-W22 7.5HP TEFC Motor 230/460V 1200rpm 254/6TC Frame

$1,675 (USD)

Shipping: FreeĀ Flat Rate Freight.

Location:Portland, OR

Description

The New WEG 00712ET3E254TC-W22 7.5HP TEFC Motor is a high-quality industrial motor designed for general-purpose use. With a rated load of 7 1/2 HP and a service factor of 1.25, this motor provides reliable performance at a base RPM of 1200. The motor features a TEFC enclosure, making it suitable for a wide range of applications. With a nominal rated input voltage of 460 V and a 60 Hz AC frequency rating, this motor is designed to meet the needs of various industrial automation and motion control systems. Made in Brazil, the WEG motor combines durability and efficiency for industrial use.

Specifications

ManufacturerWEG
Model00712ET3E254TC-W22
ConditionNew
Rated Load (HP)7 1/2
AC Frequency Rating60 Hz
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Base RPM1200

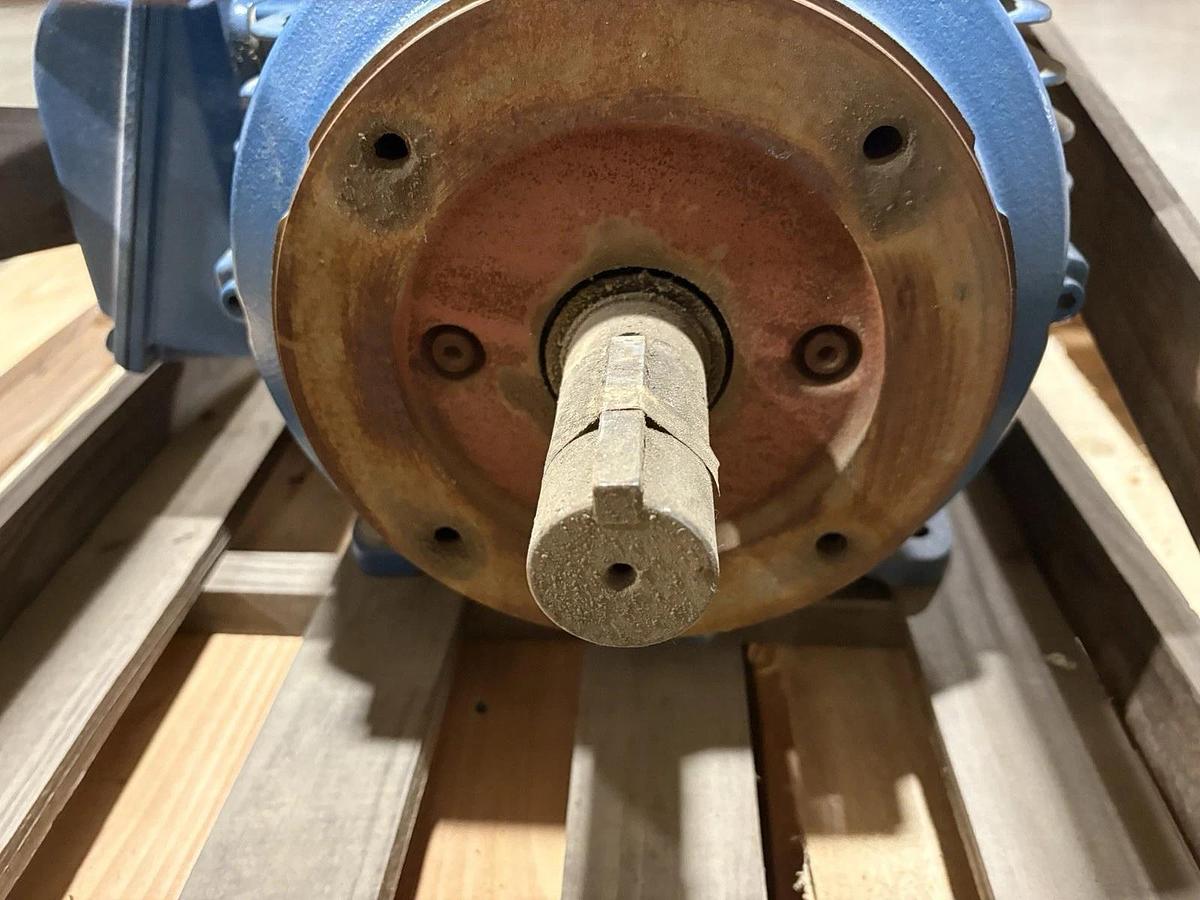

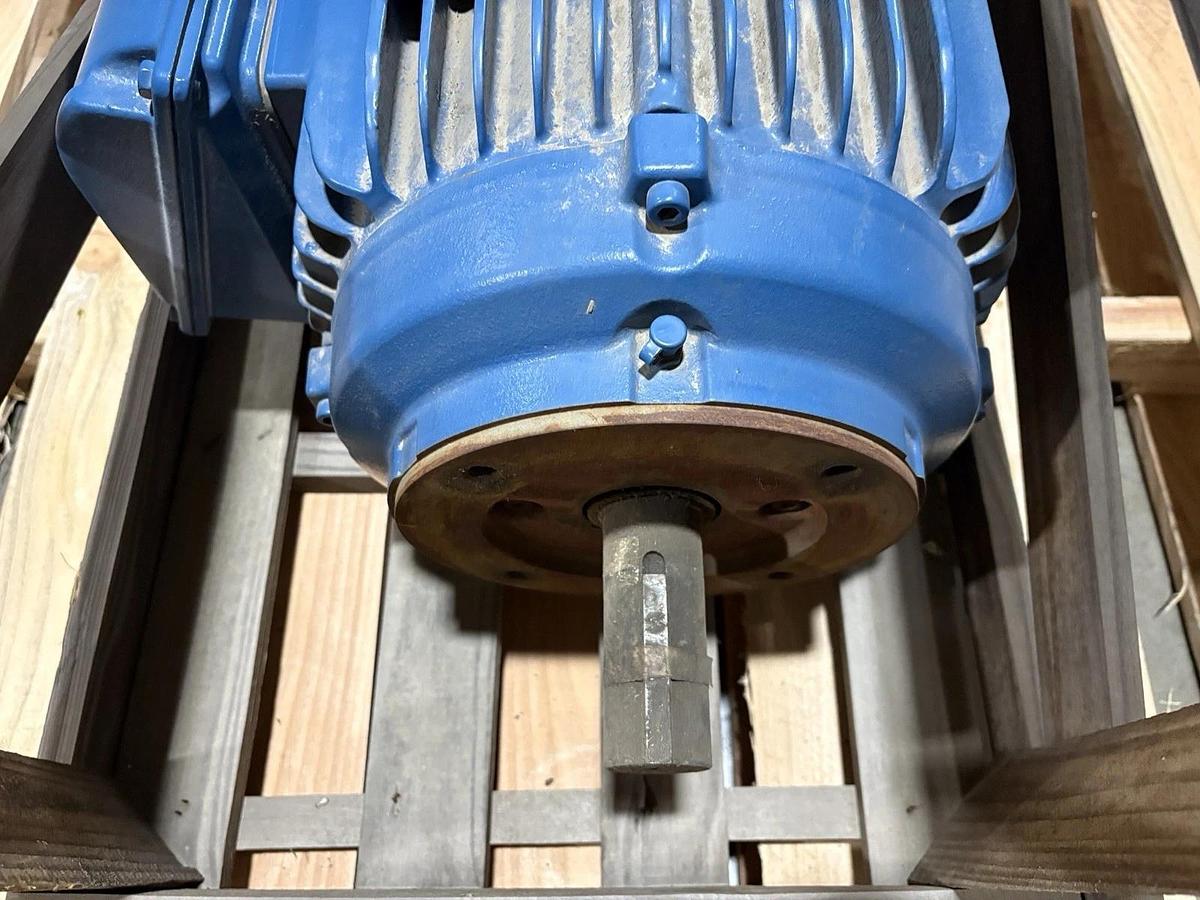

Shaft TypeKeyed
Current TypeAC
Service Factor1.25
Nominal Rated Input Voltage460 V
AC PhaseThree Phase
Country of OriginBrazil
